951102-8622-AR
CONN HEADER VERT 2POS 2MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 2 position 0.079"" (2.00mm)
Additional Information
Series: 951RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | FLASH |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.060"" (1.52mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.343"" (8.70mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.173"" (4.40mm) |
Request a Quote
Clients Also Buy
951109-2530-AR-PR
CONN HEADER SMD 9POS 2MM

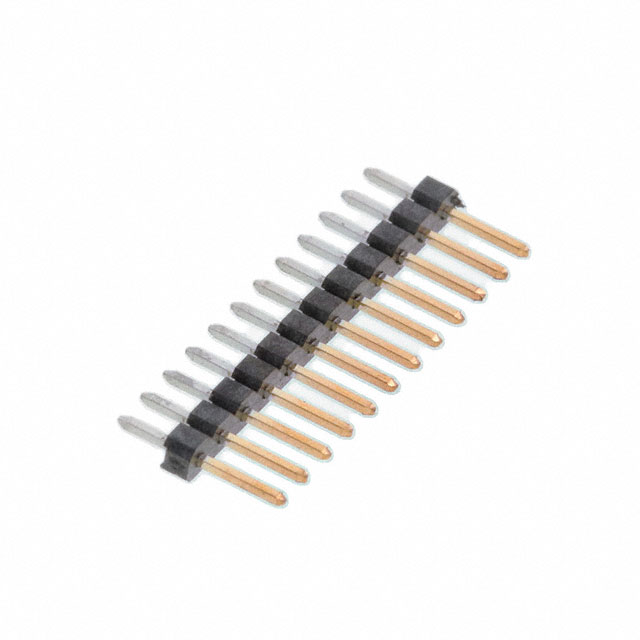

951112-8622-AR
