929838-04-36
CONN HEADER R/A 72POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More

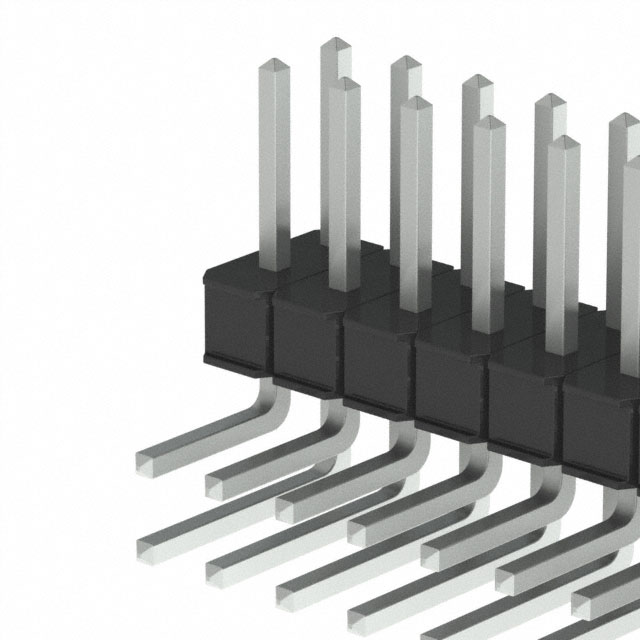

3M 929 Series right-angle header, part number 929838-04-36, offers a 72-position solution with a 0.100" (2.54mm) pitch. This unshrouded, through-hole mounted connector features male pin contacts made from copper alloy with a tin-lead mating finish, 100.0µin (2.54µm) thick. Designed for board-to-board applications, it supports a 2.5A current rating and operates within a -40°C to 105°C temperature range. The connector utilizes PBT, Polyester, Glass Filled insulation material with a UL94 V-0 flammability rating. Common in industrial automation and telecommunications equipment, this component employs a push-pull fastening type for secure connection.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 72 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.145"" (3.68mm) |
| Insulation Height | 0.215"" (5.45mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.235"" (5.97mm) |
