929838-01-36

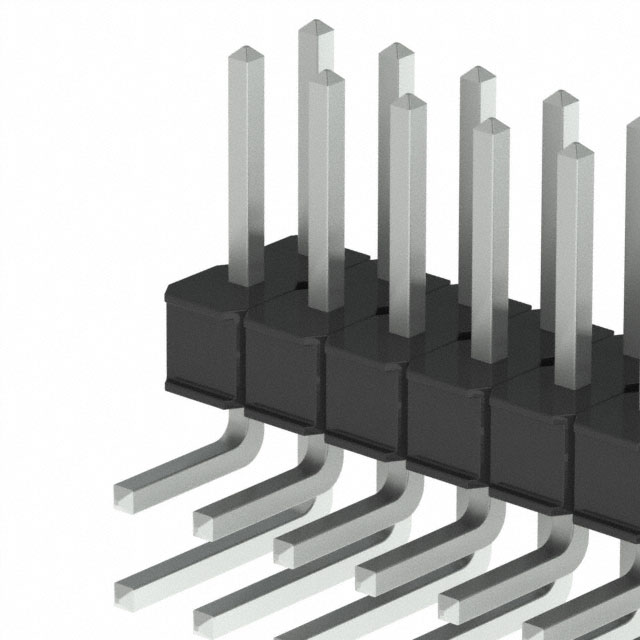

CONN HEADER R/A 72POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
The 3M 929 Series connector, part number 929838-01-36, is a right-angle, through-hole header featuring 72 positions on a 2.54mm pitch. This unshrouded male pin connector utilizes a copper alloy contact material with a tin-lead mating finish, 100.0µin (2.54µm) thick. It supports a 2.5A current rating and operates within a temperature range of -40°C to 105°C. The insulation is constructed from PBT, Polyester, and glass-filled materials, rated UL94 V-0. Designed for board-to-board style connections, this component is commonly found in industrial automation, telecommunications, and consumer electronics applications.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 72 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.215"" (5.45mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.235"" (5.97mm) |
