929836-01-36
CONN HEADER VERT 72POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More

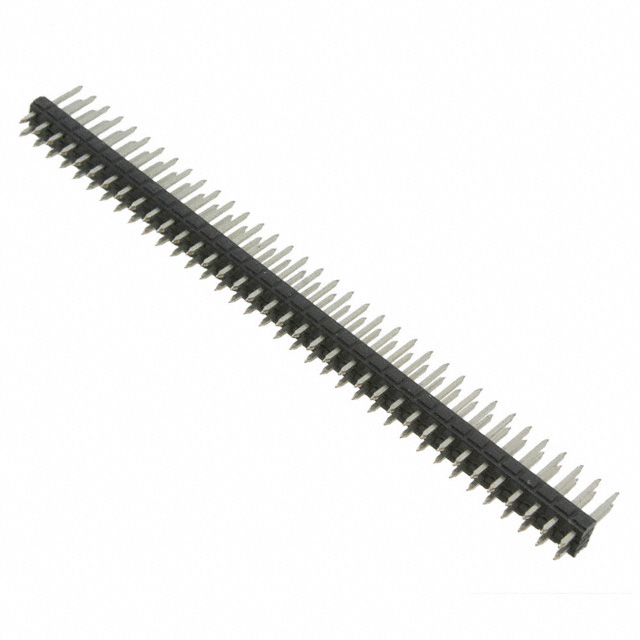

3M 929 Series connector header, part number 929836-01-36, is a 72-position, unshrouded, male pin header designed for through-hole mounting. This board-to-board connector features a 0.100" (2.54mm) pitch and a 0.100" (2.54mm) row spacing, with a mating contact finish of tin-lead measuring 100.0µin (2.54µm). The copper alloy contacts have a mating length of 0.235" (5.97mm) and a post length of 0.110" (2.79mm). Constructed with PBT, Polyester, and glass-filled insulation, this header has a UL94 V-0 flammability rating and operates across a temperature range of -40°C to 105°C. It supports a current rating of 2.5A and utilizes a push-pull fastening type. This component is commonly found in industrial automation and data communication applications.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.445"" (11.30mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.235"" (5.97mm) |
