929834-03-36

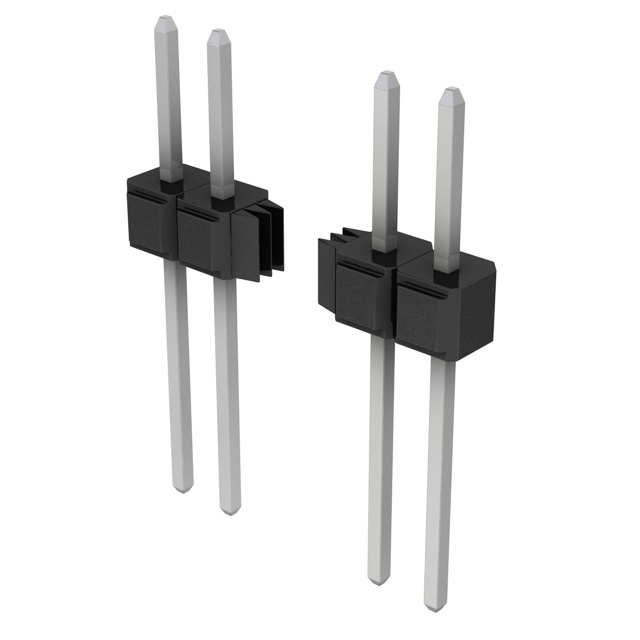

CONN HEADER VERT 36POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
The 3M 929 series connector header, part number 929834-03-36, is a 36-position, unshrouded, vertical through-hole male pin header. This component features a 0.100" (2.54mm) pitch and is constructed with a copper alloy contact material. The mating contacts are finished with 100.0µin (2.54µm) of tin-lead plating and have a mating contact length of 0.235" (5.97mm). The insulation, made from glass-filled PBT and polyester, is black and rated UL94 V-0 for material flammability. Designed for board-to-board applications, this header has a current rating of 2.5A and operates within a temperature range of -40°C to 105°C. It is suitable for use in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.410"" (10.41mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.745"" (18.92mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.235"" (5.97mm) |
