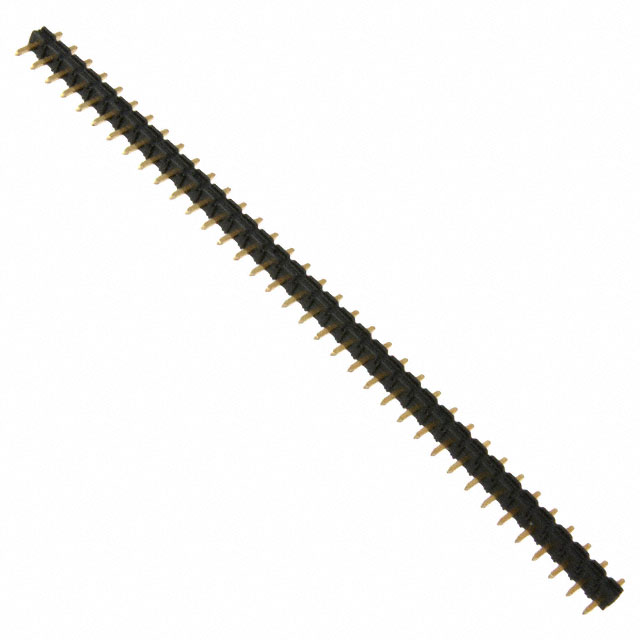

929805-01-36-I
CONN HEADER VERT 36POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
3M 929 Series connector header, part number 929805-01-36-I, offers a 36-position, single-row, through-hole mounting solution with a 2.54mm pitch. This breakaway header features male pin contacts made from copper alloy with gold plating for mating and post connections, ensuring reliable signal integrity. The PBT, polyester, and glass-filled insulation material is UL94 V-0 rated, with a black color and 2.92mm insulation height. Designed for board-to-board applications, this unshrouded connector supports a 2.5A current rating. Its robust construction and 0.100" mating pitch make it suitable for industrial automation, telecommunications, and medical equipment sectors. The header operates within a temperature range of -40°C to 105°C and utilizes solder termination.
Additional Information
Series: 929RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.115"" (2.92mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.318"" (8.08mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.093"" (2.36mm) |
