929710-01-36

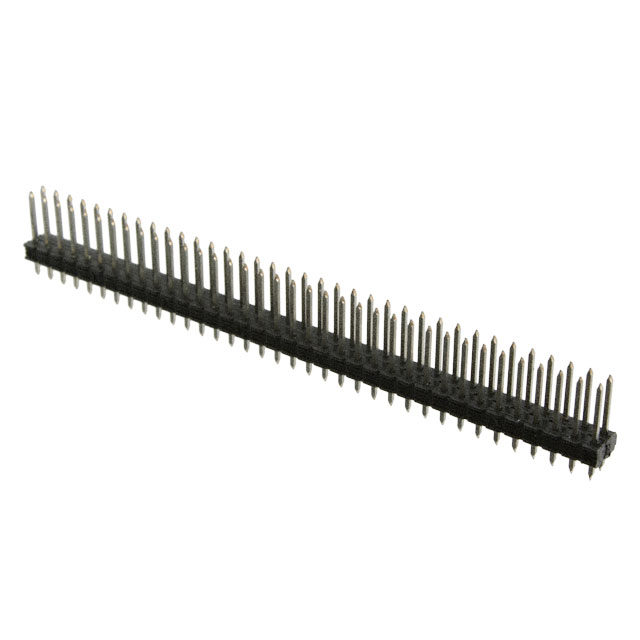

CONN HEADER VERT 72POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
The 3M 929710-01-36 is a 72-position, dual-row header designed for board-to-board applications. This unshrouded connector features a 2.54mm (0.100") pitch and utilizes male pin contacts made from a copper alloy. The mating contacts are finished with 100µin (2.54µm) of tin-lead, ensuring reliable connections. With a current rating of 2.5A and a push-pull fastening type, this through-hole mounted component is constructed with PBT, polyester, and glass-filled insulation materials, rated UL94 V-0 for flammability. Operating within a temperature range of -40°C to 105°C, this header is suitable for use in industrial and consumer electronics sectors.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.528"" (13.42mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
