929700-11-36

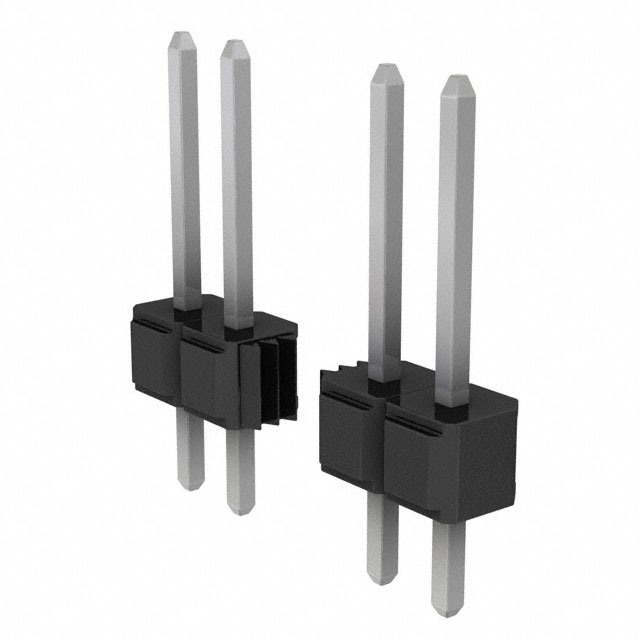

CONN HEADER VERT 36POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
The 3M 929 series connector header, part number 929700-11-36, is a 36-position, unshrouded, vertical through-hole component with a 2.54mm pitch. This header features a tin-lead mating contact finish with a thickness of 100µin (2.54µm), utilizing a copper alloy for its male pin contacts. The insulation, constructed from PBT, polyester, and glass-filled materials, is rated UL94 V-0 and is black in color. With a current rating of 2.5A, this connector is suitable for board-to-board applications. The operating temperature range is -40°C to 105°C. This component is commonly found in industrial automation, test and measurement, and consumer electronics sectors.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.543"" (13.80mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.318"" (8.08mm) |
