929700-01-36
CONN HEADER VERT 36POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More

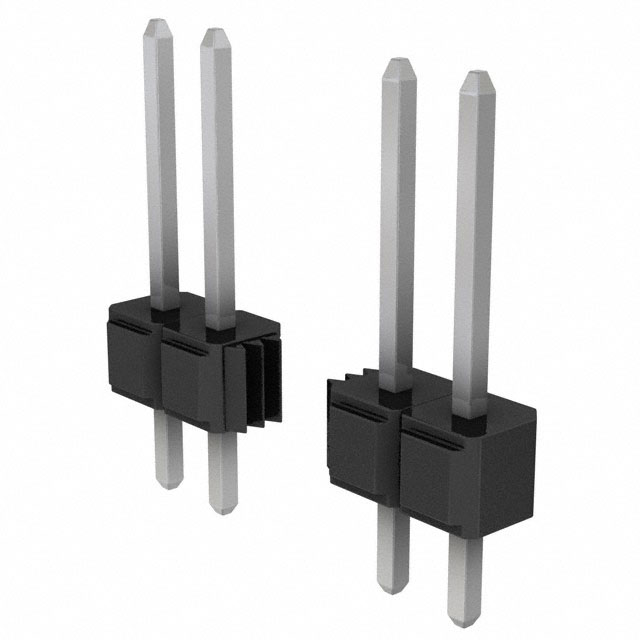

3M 929 Series connector header, part number 929700-01-36, is a vertical, unshrouded male pin header designed for through-hole mounting. This component features 36 positions with a 0.100" (2.54mm) pitch, arranged in a single row. The mating contacts are constructed from a copper alloy with a tin-lead finish, offering a thickness of 100.0µin (2.54µm). Each pin has a mating contact length of 0.318" (8.08mm) and a post length of 0.110" (2.79mm). The insulation material is a glass-filled PBT and polyester blend, rated UL94 V-0 for flammability, with an insulation height of 0.100" (2.54mm) and a black color. The header supports a current rating of 2.5A and operates within a temperature range of -40°C to 105°C. This connector is suitable for board-to-board applications and is supplied in bulk packaging.
Additional Information
Series: 929RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 2.5A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.528"" (13.42mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.318"" (8.08mm) |
