45204-220230
CONN HEADER SMD 4POS 1.27MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 4 position 0.050"" (1.27mm)
Additional Information
Series: 452RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Keying Slot, Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 125V |
| Current Rating (Amps) | 1A |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -65°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | - |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.222"" (5.65mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.050"" (1.27mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
45210-500200
CONN HEADER R/A 10POS 1.27MM
45226-620200
26P HDR ST VTH LATCH AU F

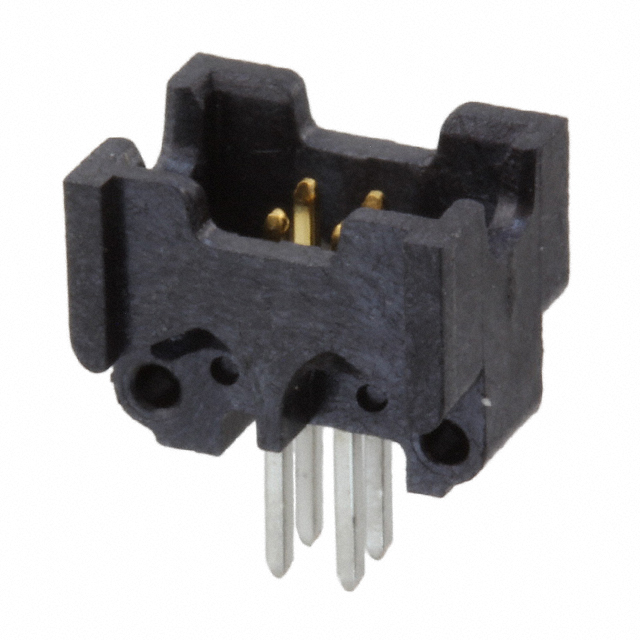

45204-600230
