3432-6305

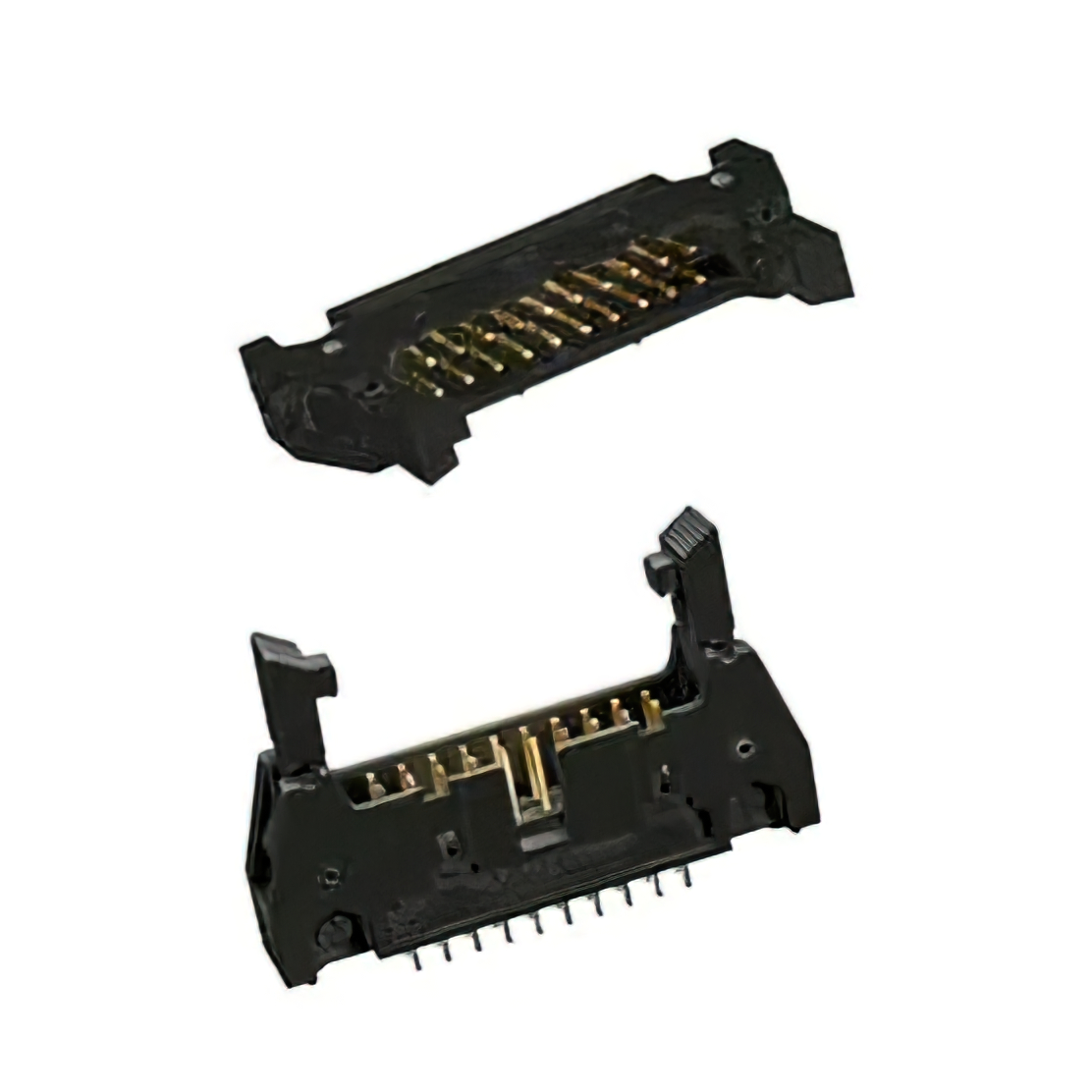

CONN HEADER VERT 40POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
The 3M 3000 series connector header, part number 3432-6305, is a 40-position, shrouded, vertical through-hole component with a 2.54mm pitch. This male pin header features copper alloy contacts with gold mating finish (30.0µin) and tin-lead post finish, designed for robust connections. It offers a 1A current rating and operates within a temperature range of -55°C to 105°C. Keying slots and mounting flanges are included for enhanced assembly and security. Insulation is provided by UL94 V-0 rated PBT and polyester, glass-filled material. This component is suitable for board-to-board or cable applications and is often utilized in industrial automation and telecommunications sectors.
Additional Information
Series: 3000RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot, Mounting Flange |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Number of Positions Loaded | All |
| Termination | Wire Wrap |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.610"" (15.49mm) |
| Insulation Height | 0.680"" (17.27mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 1.150"" (29.21mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.240"" (6.10mm) |
