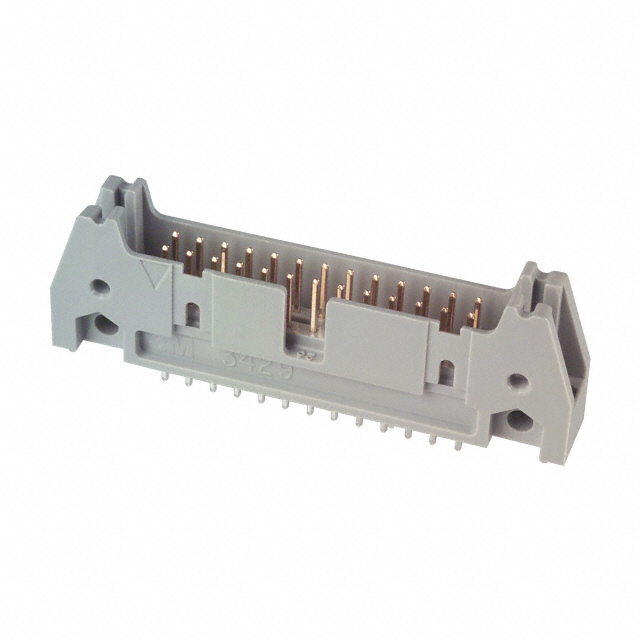

3429-6002
CONN HEADER VERT 26POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More
3M 3000 Series, 3429-6002 is a shrouded header connector, designed for board-to-board or cable applications. This component features 26 positions arranged in two rows, with a 0.100" (2.54mm) pitch and row spacing. The header utilizes male pin contacts made from a copper alloy, offering a gold contact finish for mating surfaces with a thickness of 30.0µin (0.76µm) and a tin-lead finish on the posts. With a current rating of 1A, it supports solder termination and is mounted via through-hole technology. The insulation is constructed from glass-filled PBT and polyester, boasting a UL94 V-0 flammability rating. Keying slots and a mounting flange are incorporated for enhanced assembly and stability. This header operates within a temperature range of -55°C to 105°C and finds application in industrial, automotive, and consumer electronics sectors.
Additional Information
Series: 3000RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot, Mounting Flange |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.112"" (2.84mm) |
| Insulation Height | 0.680"" (17.27mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.652"" (16.56mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.240"" (6.10mm) |
