3408-5202
CONN HEADER R/A 16POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More

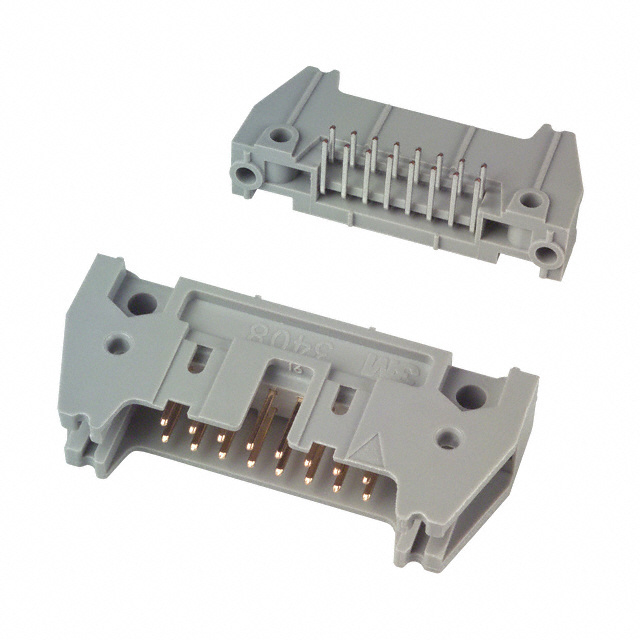

The 3M 3000 series 3408-5202 is a right-angle, through-hole header with 16 positions and a 0.100" (2.54mm) pitch. This shrouded header features a copper alloy contact material with gold plating on mating surfaces (30.0µin) and tin-lead plating on the posts. The insulation is constructed from glass-filled PBT and is rated UL94 V-0. Designed for board-to-board or cable applications, it offers a current rating of 1.75A and includes keying slots and mounting flanges for secure assembly. Operating within a -55°C to 105°C temperature range, this component is utilized in various industries including telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: 3000RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot, Mounting Flange |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1.75A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.112"" (2.84mm) |
| Insulation Height | 0.340"" (8.64mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.240"" (6.10mm) |
