30334-6002HB
CONN HEADER VERT 34POS 2.54MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More

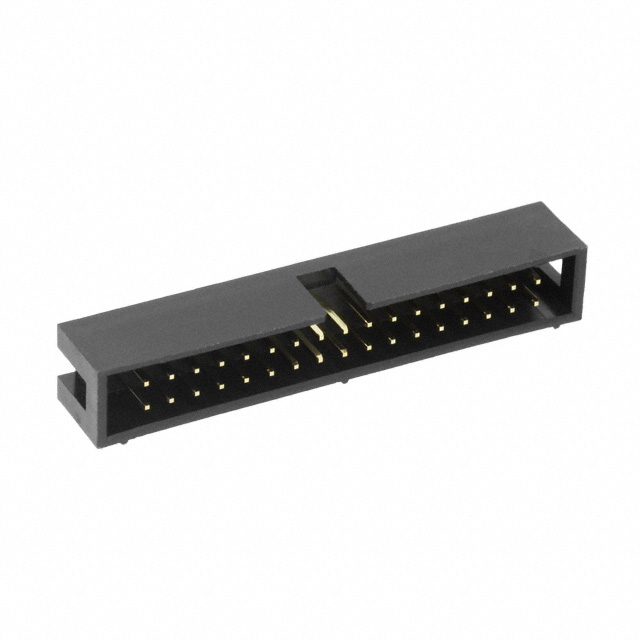

3M 303 Series connector header, part number 30334-6002HB, features a 34-position, 2-row configuration with a 0.100" (2.54mm) pitch. This shrouded header, designed for through-hole mounting, utilizes male pin contacts with a brass contact material and gold plating (FLASH thickness for mating). Key specifications include a 1A current rating and an operating temperature range of -55°C to 105°C. The header boasts PBT, Polyester, Glass Filled insulation material with a UL94 V-0 flammability rating and includes a keying slot. Suitable for board-to-board or cable applications, this component is commonly found in industrial automation, telecommunications, and consumer electronics sectors.
Additional Information
Series: 303RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | FLASH |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.366"" (9.30mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.236"" (6.00mm) |
