159250-6002
CONN HEADER VERT 50POS 2MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More

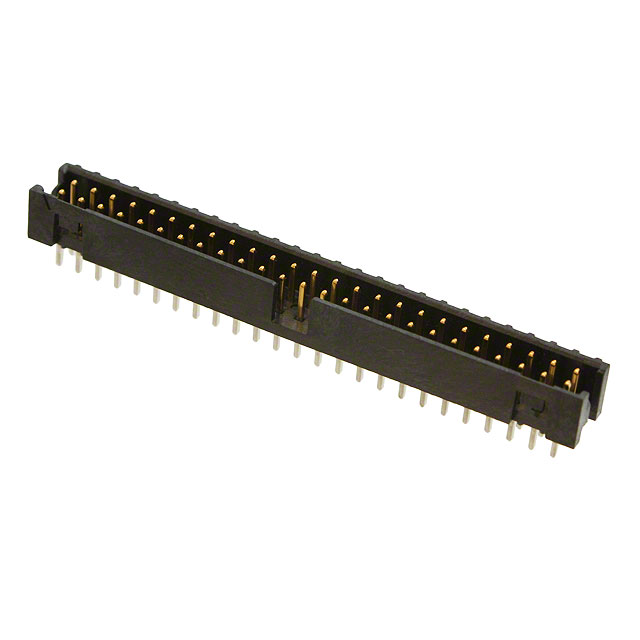

3M 159 Series connector header, part number 159250-6002, is a 50-position, two-row, shrouded male pin header with a 2.00mm pitch. This through-hole mounted component features a gold mating contact finish with a 15.0µin thickness and a tin post contact finish. Constructed from copper alloy, the square contacts have a mating length of 3.61mm and a post length of 2.84mm. The header is rated for 1.25A and 150V, with an operating temperature range of -55°C to 105°C. The black insulation, made from glass-filled Liquid Crystal Polymer (LCP), carries a UL94 V-0 flammability rating. Keying slots are incorporated for proper orientation, and a detent lock fastening type ensures secure connection. This component is suitable for board-to-cable/wire applications and is commonly utilized in industrial automation and telecommunications sectors.
Additional Information
Series: 159RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 150V |
| Current Rating (Amps) | 1.25A |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.112"" (2.84mm) |
| Insulation Height | 0.210"" (5.33mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Contact Length - Mating | 0.142"" (3.61mm) |
