151240-8422-RB
CONN HEADER VERT 40POS 2MMManufacturer: 3M
Categories: Headers, Male Pins
Quality Control: Learn More

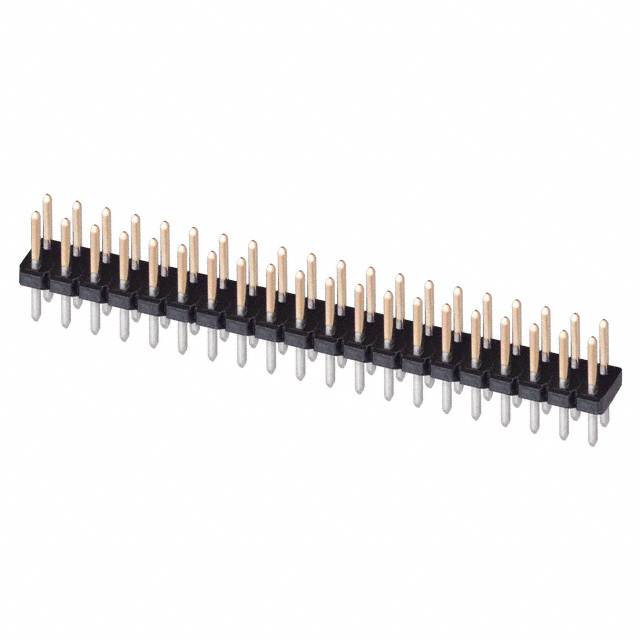

The 3M 1512 series connector header, part number 151240-8422-RB, is a 40-position, 2-row, 2.00mm pitch vertical header designed for through-hole mounting. This component features male pin contacts with a square cross-section, constructed from copper alloy. Mating contacts are finished with 30µin (0.76µm) of gold for enhanced conductivity and durability, while the post contacts utilize a tin finish. The insulation material is a glass-filled Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the insulation height is 1.52mm. Operating within a temperature range of -55°C to 105°C, this unshrouded header has a current rating of 1A. It is suitable for board-to-board or cable applications and is supplied in trays. This connector is commonly employed in industrial automation, consumer electronics, and data communications equipment.
Additional Information
Series: 1512RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.060"" (1.52mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.329"" (8.36mm) |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Contact Length - Mating | 0.152"" (3.86mm) |
