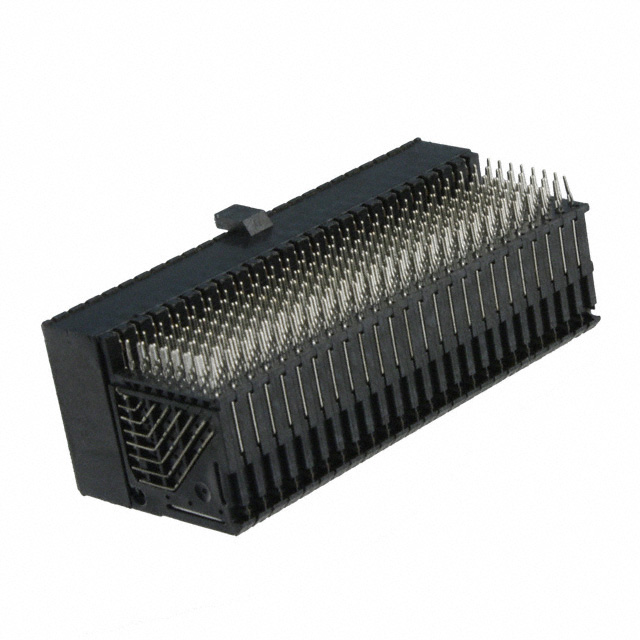

HSHM-S200DE4-8AP1-TG30
CONN RECEPT 200POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ HSHM Series HSHM-S200DE4-8AP1-TG30 is a 200-position, female socket receptacle connector designed for high-density backplane applications. Featuring a robust 2.00mm pitch, this connector utilizes a right-angle, through-hole mounting style for secure PCB integration. The press-fit termination method ensures reliable mechanical and electrical connections without the need for soldering. Contacts are finished with 30.0µin (0.76µm) of gold plating for superior conductivity and corrosion resistance. This component is suitable for demanding environments within the telecommunications, data processing, and industrial control sectors.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 200 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | DE 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
