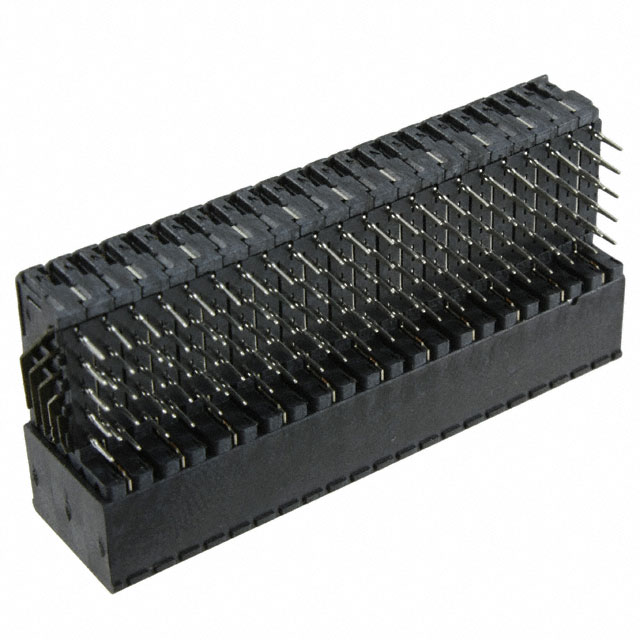

HSHM-S110B1-5AP1-TG30
CONN RECEPT 110POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ HSHM Series HSHM-S110B1-5AP1-TG30 is a 110-position receptacle connector featuring female sockets with a 2.00mm pitch. This right-angle, through-hole mounted component is designed for backplane applications. It utilizes a robust press-fit termination method for secure board mounting without soldering. The connector boasts gold contact plating with a thickness of 30.0µin (0.76µm) for enhanced conductivity and durability. This device is suitable for demanding applications in the telecommunications, data communications, and industrial automation sectors.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
