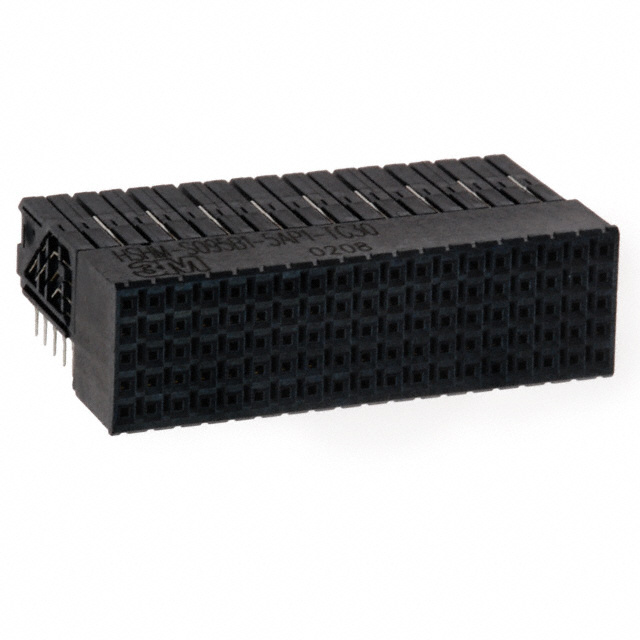

HSHM-S095B1-5AP1-TG30
CONN RECEPT 95POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
The 3M MetPak™ HSHM series HSHM-S095B1-5AP1-TG30 is a high-density 95-position receptacle connector featuring 2.00mm pitch spacing. This right-angle, through-hole mounted component utilizes a press-fit termination for robust board attachment, suitable for demanding backplane applications. The female socket configuration, designed with 5 rows, ensures reliable signal integrity. Contact surfaces are finished with 30.0µin (0.76µm) of gold plating for superior conductivity and corrosion resistance. This component is widely adopted in telecommunications, data networking, and industrial automation systems where reliable high-speed interconnects are critical.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 95 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 19 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
