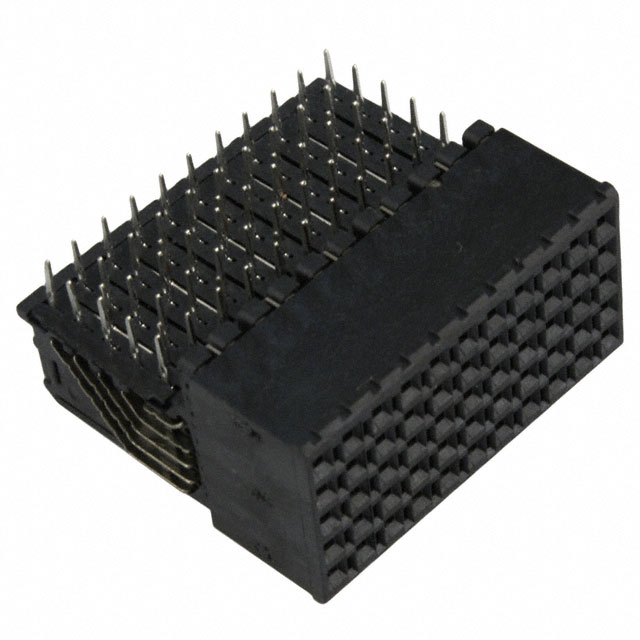

HSHM-S055B1-5AP1-TR40B
CONN RECEPT 55POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ HSHM series HSHM-S055B1-5AP1-TR40B is a 55-position, female socket receptacle designed for backplane applications. This hard metric connector features a 2.00mm pitch and a through-hole, right-angle mounting style. The connector utilizes gold plating with a thickness of 50.0µin (1.27µm) on its contacts for enhanced conductivity and durability. Its press-fit termination ensures a robust mechanical connection. This component is commonly found in telecommunications, data networking, and high-performance computing systems. The connector is supplied in bulk packaging.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 55 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 11 |
| Contact Finish Thickness | 50.0µin (1.27µm) |
