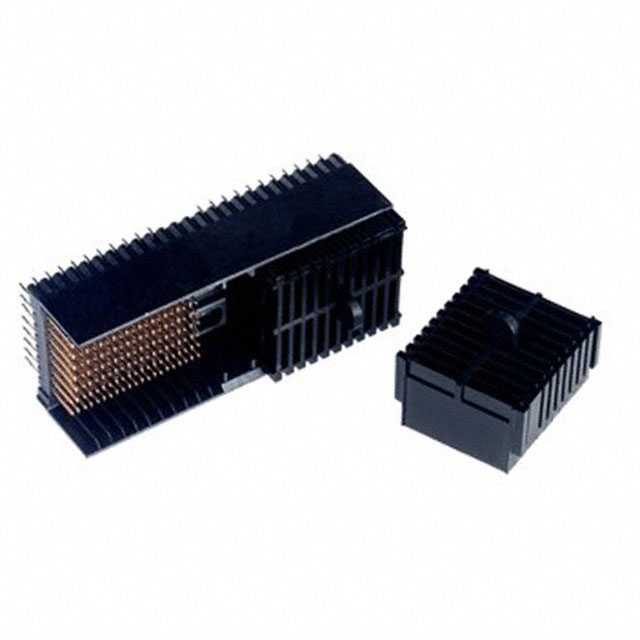

HSHM-H176D5-8CP1-TG30
CONN HEADER 176POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ HSHM Series HSHM-H176D5-8CP1-TG30 is a 176-position, 2.00mm pitch male pin header designed for backplane applications. This connector features 8 rows and utilizes a press-fit termination method for robust, solderless assembly. The gold-plated contacts offer a contact finish thickness of 30.0µin (0.76µm) for reliable conductivity. The through-hole mounting ensures secure integration into printed circuit boards. This component is commonly employed in telecommunications, data center infrastructure, and high-performance computing systems where high density and reliable interconnects are critical.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 176 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | D 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
