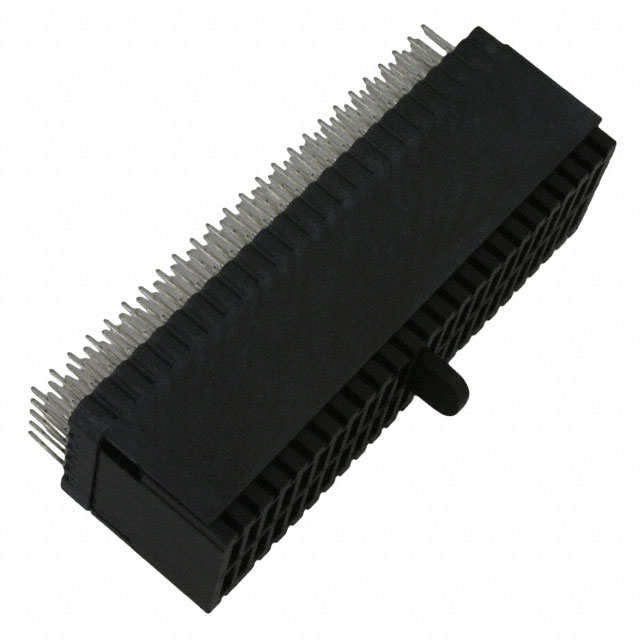

HSHM-H125B4-5CP1-TR40B
CONN HEADER 125POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ HSHM Series HSHM-H125B4-5CP1-TR40B is a 125-position male pin header connector designed for high-density backplane applications. Utilizing a 2.00mm pitch, this through-hole mounted component features a reliable press-fit termination for robust mechanical and electrical connections. The gold contact finish, with a thickness of 5.00µin (0.127µm), ensures excellent conductivity and corrosion resistance. This connector is suitable for demanding industries such as telecommunications, data networking, and industrial automation where reliable signal integrity is paramount. The HSHM series is engineered for performance and durability in complex system architectures.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 125 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 25 |
| Contact Finish Thickness | 5.00µin (0.127µm) |
