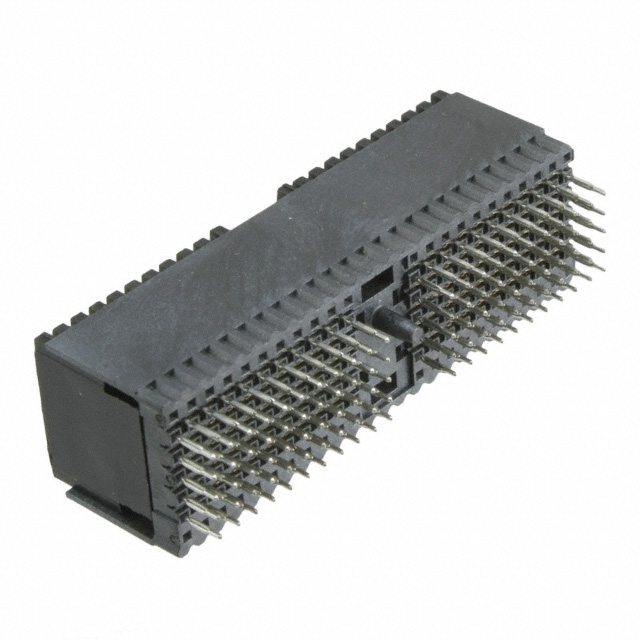

HSHM-H110A4-5CP1-TG30
CONN HEADER 110POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ HSHM Series HSHM-H110A4-5CP1-TG30 is a 110-position, 5-row male pin header connector designed for through-hole mounting. This hard metric connector features a 2.00mm pitch and utilizes a press-fit termination method for robust board attachment. The contacts are finished with 30.0µin (0.76µm) of gold plating for enhanced conductivity and durability. This header is intended for backplane applications within telecommunications, data networking, and industrial automation sectors, providing reliable high-density interconnectivity. The connector style is A 22, with all 110 positions loaded.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | A 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
