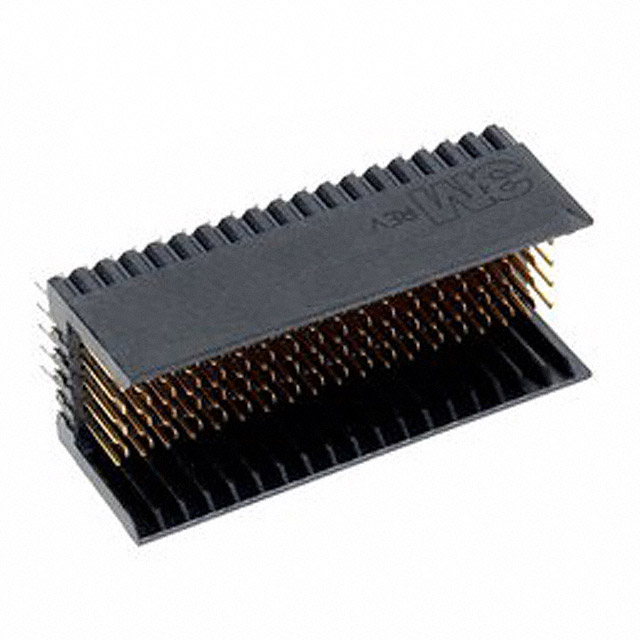

HSHM-H095B5-5CP1-TG30
CONN HEADER 95POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
The 3M MetPak™ HSHM Series HSHM-H095B5-5CP1-TG30 is a 95-position, 5-row male pin header connector. Featuring a 2.00mm pitch and designed for press-fit termination, this connector is engineered for high-density backplane applications. The gold contact finish, with a thickness of 30.0µin (0.76µm), ensures reliable performance and excellent conductivity. This component is suitable for demanding environments within the telecommunications, data processing, and industrial automation sectors. The robust design and through-hole mounting provide secure mechanical integrity.
Additional Information
Series: MetPak™ HSHMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 95 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | B 19 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
