HM-S200DE1-8AP1-TG30
CONN RECEPT 200POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

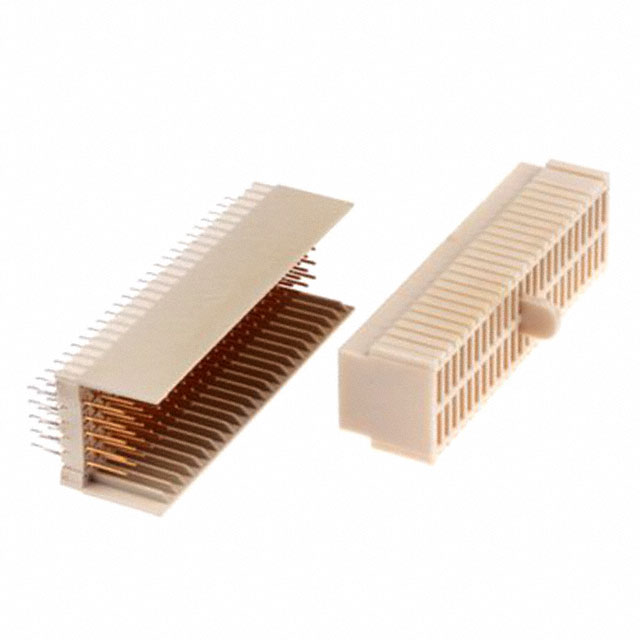

3M MetPak™ HM Series HM-S200DE1-8AP1-TG30 is a 200-position receptacle connector with female sockets. Featuring a 2.00mm pitch, this component offers a press-fit termination method for robust, solderless assembly. The right-angle, through-hole mounting configuration facilitates efficient board-level integration. Contact surfaces are finished with 30.0µin of gold plating, ensuring reliable conductivity and durability. This connector is designed for high-density applications and is commonly utilized in telecommunications, data networking, and industrial automation systems where reliable interconnectivity is paramount. The "DE 25" designation indicates its compatibility within the MetPak™ HM family for modular system design.
Additional Information
Series: MetPak™ HMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 200 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | DE 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
