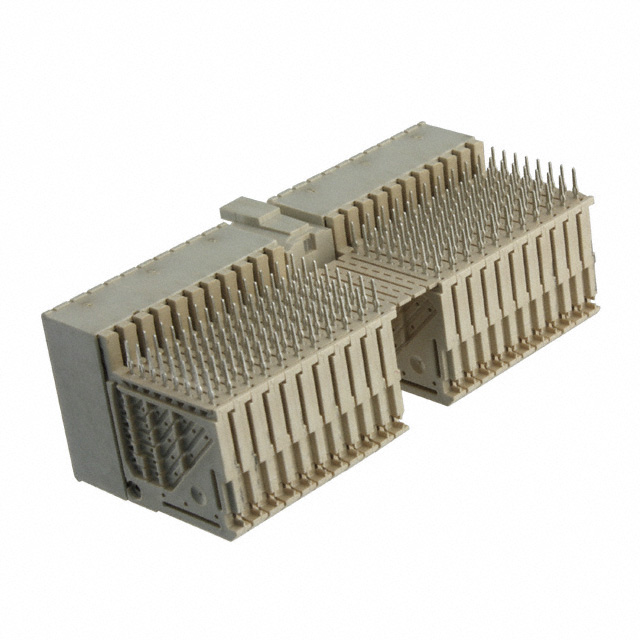

HM-S176D1-8AP1-TG30
CONN RECEPT 176POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
The 3M MetPak™ HM Series HM-S176D1-8AP1-TG30 is a 176-position receptacle connector designed for high-density board-to-board applications. This female socket connector features a 0.079" (2.00mm) pitch and an 8-row configuration, utilizing a hard metric D 22 style. The right-angle, through-hole mounting facilitates efficient PCB integration. Termination is achieved via a reliable press-fit connection. Contacts are finished with 30.0µin (0.76µm) of gold plating for enhanced conductivity and durability. This component is commonly employed in telecommunications, data networking, and industrial automation systems demanding robust and high-performance interconnect solutions.
Additional Information
Series: MetPak™ HMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 176 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | D 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
