HM-H200E1-8CS1-TG30
CONN HEADER 200POS 2MM SOLDERManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

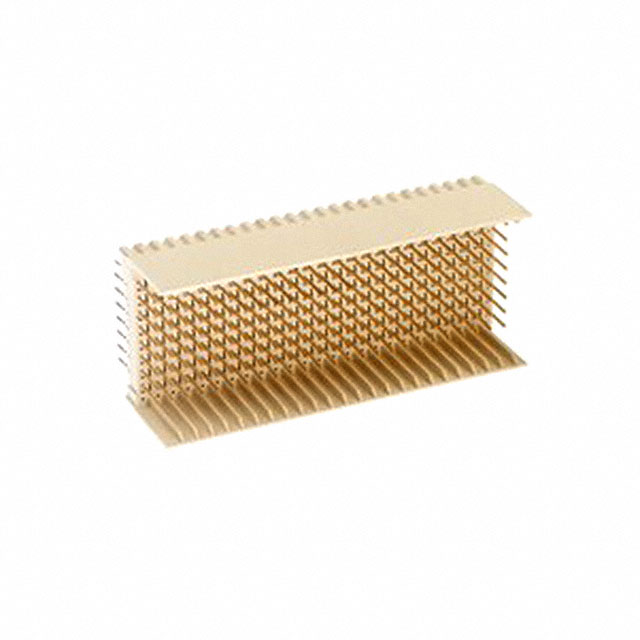

3M MetPak™ HM HM-H200E1-8CS1-TG30 is a 200-position, 8-row male pin header with a 2mm pitch. This connector features a robust E 25 style housing designed for through-hole mounting. The contacts are plated with 30.0µin (0.76µm) of gold for enhanced conductivity and durability. This component is widely utilized in telecommunications, data processing, and industrial automation applications where high-density, reliable interconnects are critical. Its through-hole termination ensures a secure solder joint for demanding environments.
Additional Information
Series: MetPak™ HMRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 200 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 8 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | E 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
