CP2-SC055-G1-TG30
CONN RECEPT 55POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

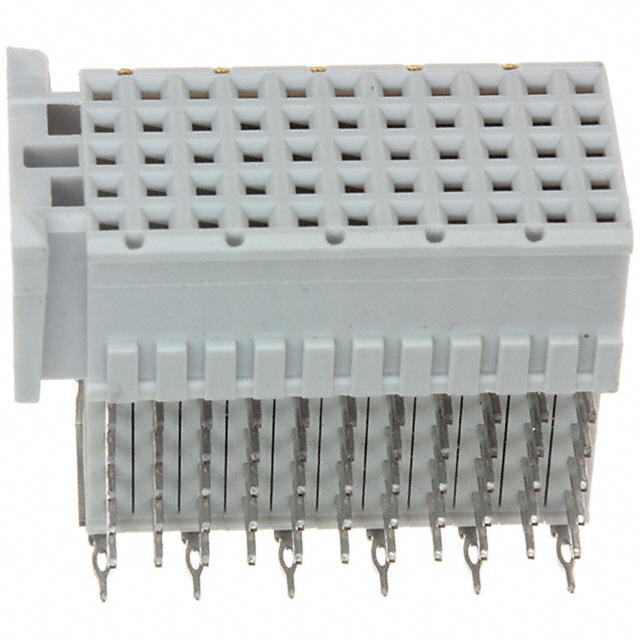

The 3M MetPak™ CP2 series CP2-SC055-G1-TG30 is a 55-position receptacle connector designed for high-density applications. Featuring a 2.00mm pitch, this female socket connector utilizes a press-fit termination method for robust and reliable board mounting. The right-angle, through-hole configuration facilitates efficient routing in compact designs. Contact surfaces are plated with 30.0µin of gold for superior conductivity and durability. This component is integral to CompactPCI systems, finding application in industrial automation, telecommunications infrastructure, and high-performance computing.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 55 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Connector Style | C 11 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
