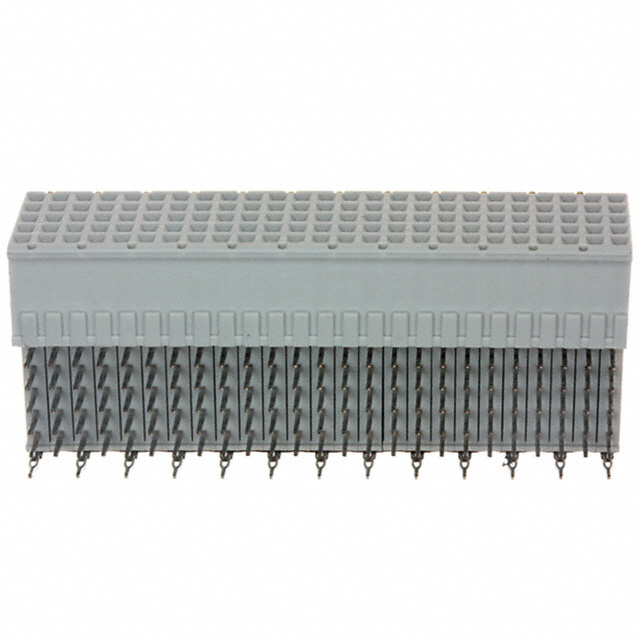

CP2-SB125-G1-TG30
CONN RECEPT 125POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
The 3M MetPak™ CP2 series CP2-SB125-G1-TG30 is a 125-position receptacle connector featuring female sockets with a 2.00mm pitch. This right-angle, through-hole mounted component utilizes a press-fit termination method. The connector is designed for CompactPCI applications, offering a robust solution for high-density interconnects. Each contact is finished with 30.0µin (0.76µm) of gold plating, ensuring reliable performance and durability. This receptacle is part of the Hard Metric, Standard category and is supplied in bulk packaging. This component is commonly found in telecommunications, industrial automation, and data acquisition systems.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 125 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Connector Style | B 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
