CP2-SB110-G1-TG30
CONN RECEPT 132POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

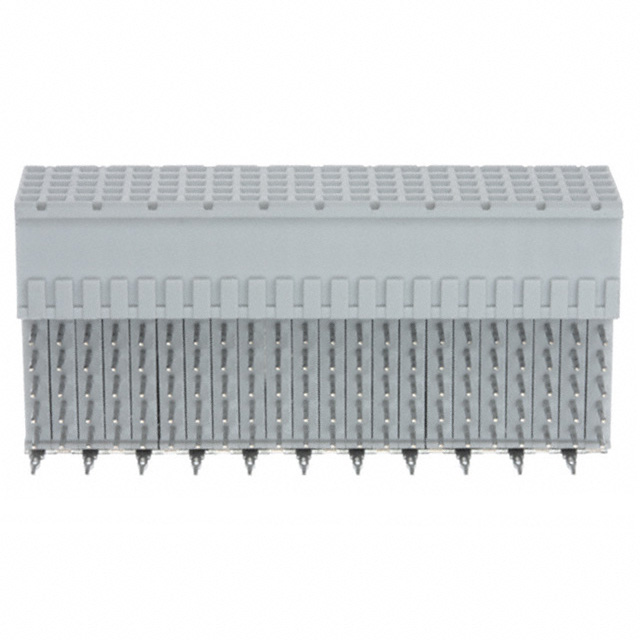

3M MetPak™ CP2 series CP2-SB110-G1-TG30 is a 132-position (110 signal, 22 ground) female socket receptacle connector. Featuring a 2.00mm pitch and right-angle, through-hole mounting, this connector utilizes a press-fit termination method. The contact finish is gold with a 30µin (0.76µm) thickness. Designed for CompactPCI applications, the MetPak™ CP2 connector is commonly found in industrial computing, telecommunications infrastructure, and high-reliability systems. This receptacle is supplied in bulk packaging.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 132 (110 + 22 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Connector Style | B 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
