CP2-SB110-G1-KR
CONN RECEPT 132POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

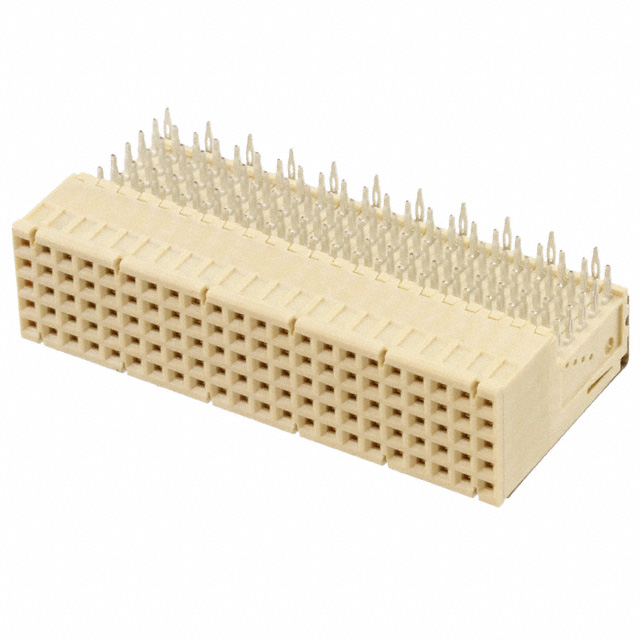

3M MetPak™ CP2 Series CP2-SB110-G1-KR is a 132-position (110 signal + 22 ground) receptacle connector featuring female sockets. This right-angle, through-hole mounted connector utilizes a 2.00mm pitch and a B 22 connector style for CompactPCI applications. The press-fit termination ensures robust mechanical and electrical connection. Contacts are finished with 30.0µin of gold for superior conductivity and durability. This component is designed for high-density interconnect solutions within the telecommunications, industrial automation, and data processing sectors.
Additional Information
Series: MetPak™ CP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 132 (110 + 22 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Connector Style | B 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
