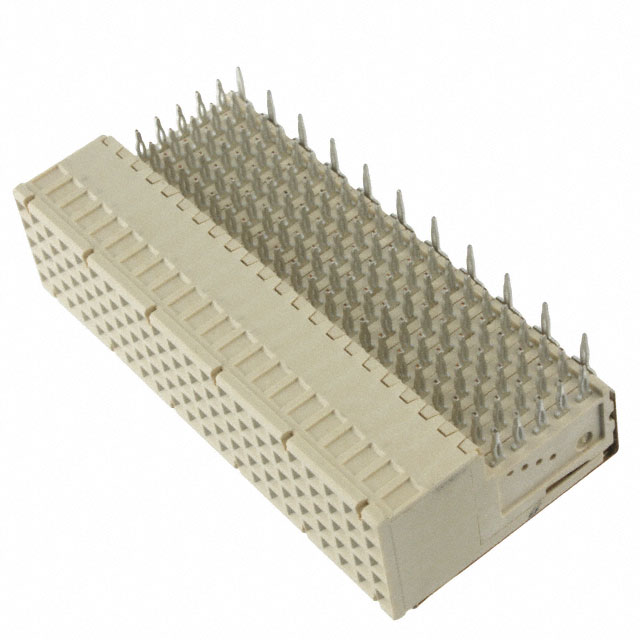

CP2-SB110-G1-FJ
CONN RECEPT 110POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ CP2 series connector, part number CP2-SB110-G1-FJ. This 110-position receptacle features female sockets with a 2.00mm pitch, designed for press-fit termination. The connector is a right-angle, through-hole mount style, with a 5+1 row configuration. It utilizes a B 22 connector style and is supplied in bulk packaging. The gold contact finish offers a thickness of 10.0µin (0.25µm). This component is integral to CompactPCI applications, frequently found in telecommunications, industrial automation, and data processing systems.
Additional Information
Series: MetPak™ CP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Connector Style | B 22 |
| Contact Finish Thickness | 10.0µin (0.25µm) |
