CP2-HC055-GF2-G30
CONN HEADER 77POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

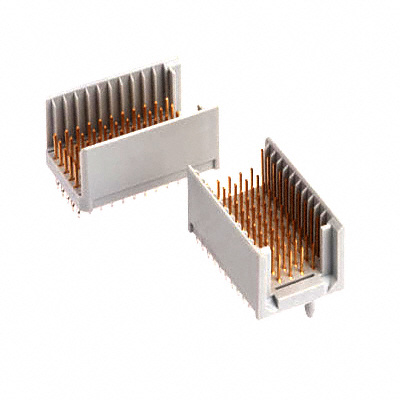

3M MetPak™ CP2 Series, CP2-HC055-GF2-G30 is a 77-position (55 signal, 22 ground) male pin header connector for CompactPCI applications. This header features a 2.00mm pitch and a through-hole mounting style with press-fit termination. The contact finish is gold with a thickness of 30.0µin (0.76µm). The connector style is C 11, designed with 5 signal rows and 2 ground rows. This component is suitable for demanding applications within the telecommunications and industrial automation sectors.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 77 (55 + 22 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Connector Style | C 11 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
