CP2-HC055-GE1-TG30
CONN HEADER 77POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

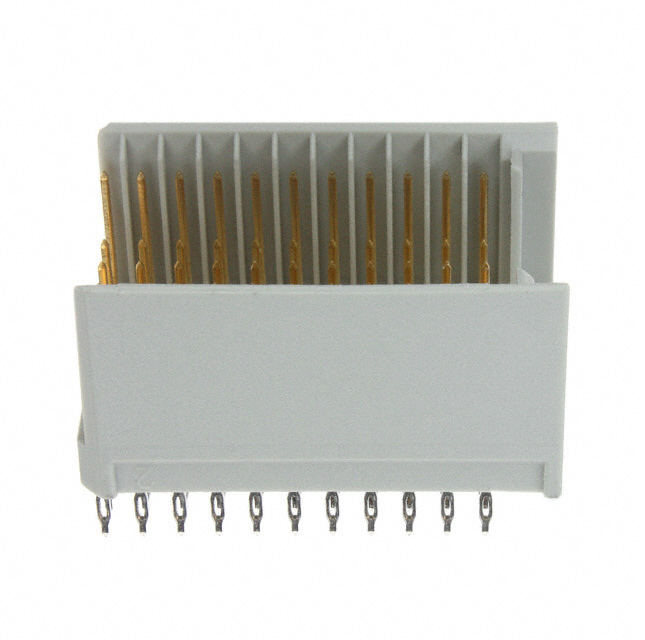

The 3M MetPak™ CP2 series connector, part number CP2-HC055-GE1-TG30, is a 77-position (55 signal + 22 ground) male pin header designed for through-hole mounting. This connector features a 2.00mm pitch and utilizes a press-fit termination method, ensuring robust mechanical and electrical connections. The contact finish is gold with a thickness of 30.0µin (0.76µm) for optimal conductivity and durability. This component is specifically engineered for CompactPCI applications, commonly found in telecommunications, industrial automation, and test and measurement equipment. The connector style is C 11, and all 77 positions are loaded.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 77 (55 + 22 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Connector Style | C 11 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
