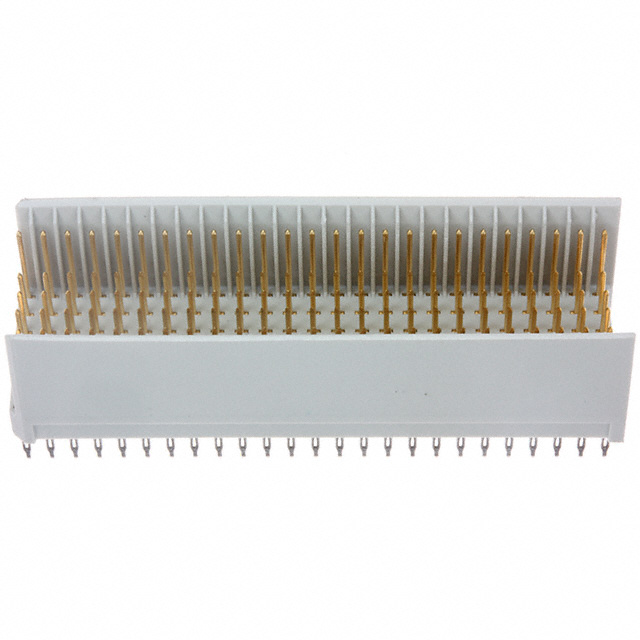

CP2-HB125-GE1-TG30
CONN HEADER 175POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ CP2 Series CP2-HB125-GE1-TG30 is a 175-position (125 signal + 50 ground) male pin header connector designed for press-fit termination. Featuring a 2.00mm pitch, this connector utilizes a robust B 25 connector style and is engineered for CompactPCI Hot Swap applications. The gold-plated contacts, with a 30.0µin (0.76µm) finish, ensure reliable conductivity and durability. This through-hole mounted header, with 5 signal rows and 2 ground rows, is supplied in bulk packaging. Its high-density design and press-fit termination are critical for demanding telecommunications and industrial computing platforms.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 175 (125 + 50 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI Hot Swap |
| Connector Style | B 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
