CP2-HB110-GE1-TG30
CONN HEADER 154POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

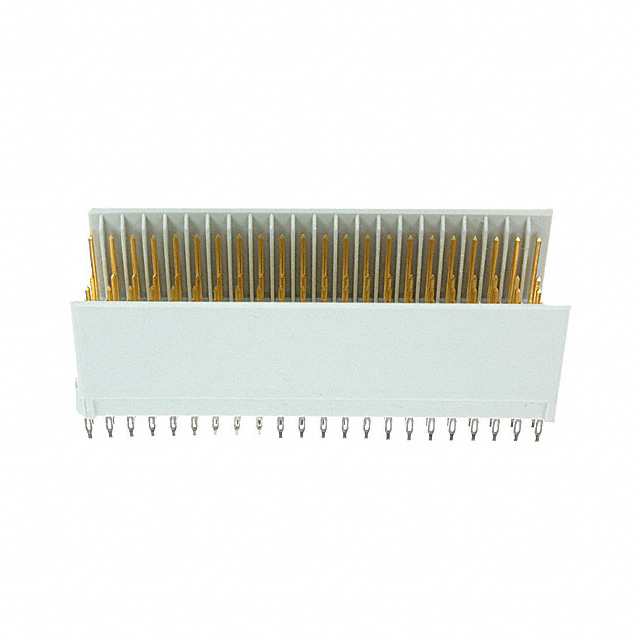

3M MetPak™ CP2 Series CP2-HB110-GE1-TG30 is a 154-position, 5+2 row header featuring a 2.00mm pitch. This male pin connector utilizes a press-fit termination for robust, solderless assembly. The individual contacts are finished with 30.0µin (0.76µm) of gold, ensuring reliable conductivity and durability. Designed for through-hole mounting, this connector is engineered for CompactPCI Hot Swap applications, commonly found in high-reliability computing and industrial automation systems. The connector is supplied in bulk packaging.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 154 (110 + 44 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI Hot Swap |
| Connector Style | B 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
