CP2-HB110-GA1-FJ
CONN HEADER 154POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

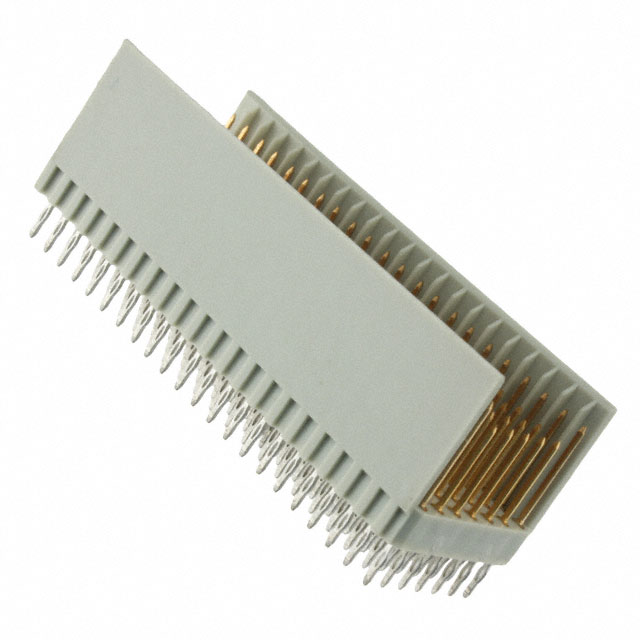

3M MetPak™ CP2 Series connector, part number CP2-HB110-GA1-FJ, is a 154-position male pin header designed for press-fit termination. This connector, featuring a 2.00mm pitch, is engineered for high-density interconnect solutions. It offers a robust "B 22" connector style and a gold contact finish with a 10.0µin (0.25µm) thickness, ensuring reliable performance and durability. The header's through-hole mounting type provides secure board attachment. This component is specifically utilized in CompactPCI Hot Swap applications, commonly found in telecommunications infrastructure, industrial automation, and high-performance computing systems where reliable and high-speed data transfer is critical. The 154 positions are fully loaded, comprising 110 signal positions and 44 ground positions distributed across five signal rows and two ground rows.
Additional Information
Series: MetPak™ CP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 154 (110 + 44 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI Hot Swap |
| Connector Style | B 22 |
| Contact Finish Thickness | 10.0µin (0.25µm) |
