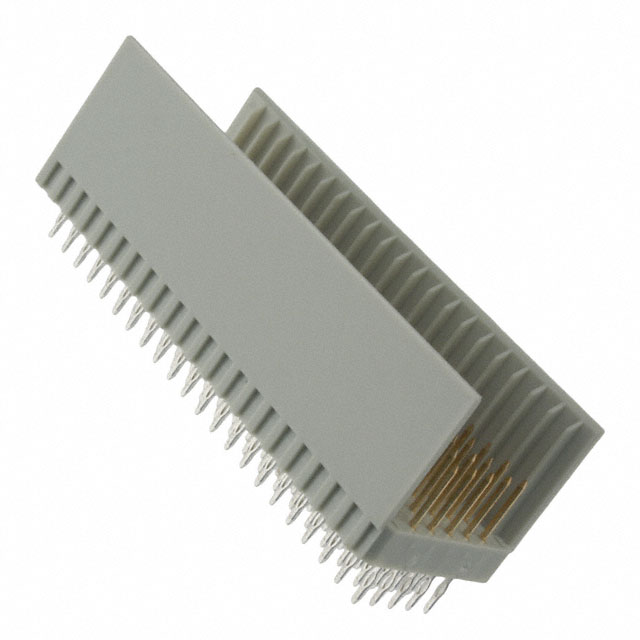

CP2-HB110-E1-TG30
CONN HEADER 110POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ CP2 series header connector, part number CP2-HB110-E1-TG30, is a 110-position, male pin type connector designed for 2.00mm pitch applications. This press-fit termination header features gold contact plating with a thickness of 30.0µin (0.76µm) for enhanced conductivity and durability. The 5-row configuration and through-hole mounting style ensure robust mechanical connection. It is utilized in CompactPCI Hot Swap systems, commonly found in telecommunications infrastructure, industrial automation, and high-performance computing environments. This component is supplied in bulk packaging.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI Hot Swap |
| Connector Style | B 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
