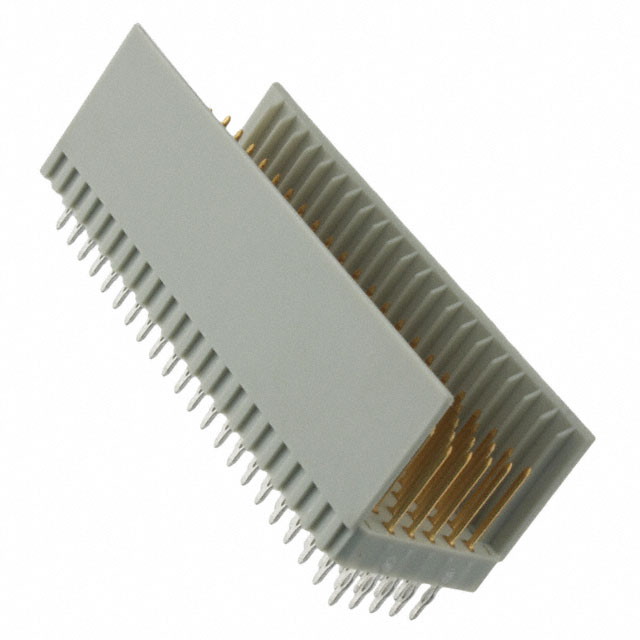

CP2-HB110-A1-KR
CONN HEADER 110POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
3M MetPak™ CP2 Series CP2-HB110-A1-KR is a 110-position male pin header connector designed for high-performance CompactPCI Hot Swap applications. This through-hole mounted connector features a 2.00mm pitch and a Connector Style of B 22. The robust press-fit termination ensures reliable mechanical and electrical connections. Each contact is finished with 30.0µin (0.76µm) of gold plating for superior conductivity and corrosion resistance. The 5-row configuration provides a compact solution for demanding board-to-board interconnects. This component is ideal for use in telecommunications, industrial automation, and data processing systems where high density and reliable interconnectivity are critical.
Additional Information
Series: MetPak™ CP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 110 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI Hot Swap |
| Connector Style | B 22 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
