CP2-HB095-GA4-G30
CONN HEADER 133POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More

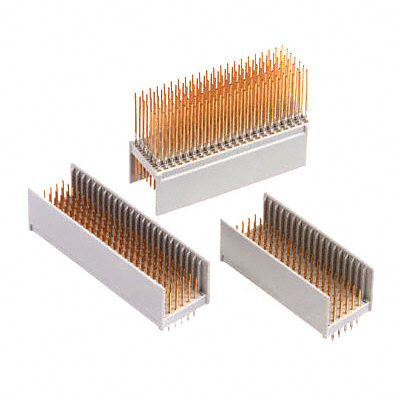

3M MetPak™ CP2 series connector, part number CP2-HB095-GA4-G30, is a 133-position male pin header designed for press-fit termination. This through-hole mounted connector features a 2.00mm pitch and a Connector Style B 19 configuration. It offers 95 signal positions and 38 ground positions, with all positions loaded. The contacts are finished with 30.0µin (0.76µm) of gold for enhanced conductivity and durability. This component is utilized in CompactPCI Hot Swap applications, commonly found in telecommunications infrastructure, industrial automation, and computing systems. The bulk packaging facilitates high-volume integration.
Additional Information
Series: MetPak™ CP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 133 (95 + 38 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 2 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI Hot Swap |
| Connector Style | B 19 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
