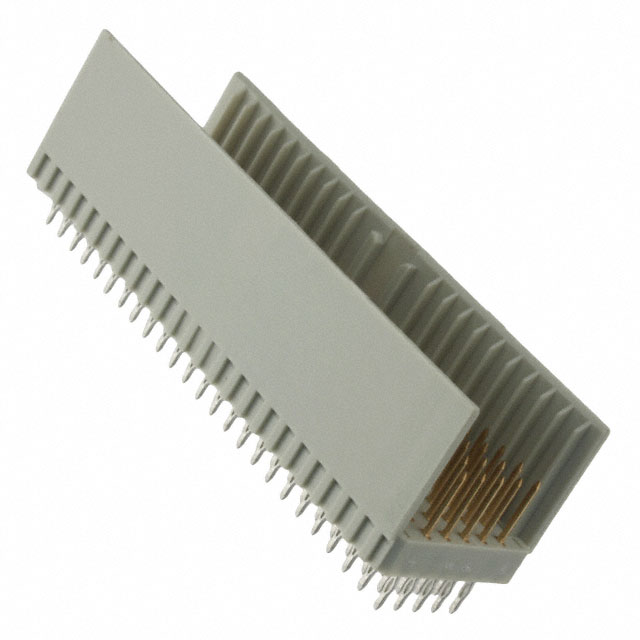

CP2-HAB125-E1-KR
CONN HEADER 125POS 2MM PRESS-FITManufacturer: 3M
Categories: Hard Metric, Standard
Quality Control: Learn More
The 3M MetPak™ CP2 series CP2-HAB125-E1-KR is a 125-position, 5-row male pin header designed for 2.00mm pitch applications. This connector features a press-fit termination for robust, solderless board mounting. The gold contact finish, with a thickness of 30.0µin (0.76µm), ensures excellent conductivity and durability. Engineered for demanding environments, this header is a key component in CompactPCI Hot Swap architectures, commonly found in telecommunications, industrial automation, and high-performance computing systems. It utilizes the AB 25 connector style, offering a compact and reliable interconnect solution. Supplied in bulk packaging.
Additional Information
Series: MetPak™ CP2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 125 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | CompactPCI Hot Swap |
| Connector Style | AB 25 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
