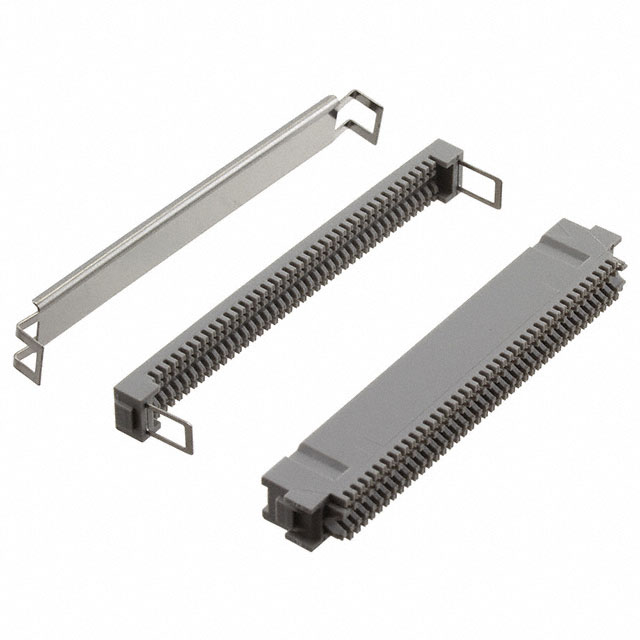

82080-6006
CONN RCPT 80POS IDC 30AWG GOLDManufacturer: 3M
Categories: Free Hanging, Panel Mount
Quality Control: Learn More
3M 820 Series 80-position receptacle connector, part number 82080-6006, offers reliable IDC termination for 30 AWG ribbon cable. This gray, free-hanging connector features gold-plated female sockets with a 30.0µin contact finish, ensuring excellent conductivity. The 0.050" (1.27mm) pitch and 0.100" (2.54mm) row spacing facilitate high-density connections. Designed for feed-through applications with integrated strain relief, this component is commonly utilized in telecommunications, industrial automation, and consumer electronics for data transmission and interconnectivity. Supplied in bulk packaging.
Additional Information
Series: 820RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through, Strain Relief |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 30 AWG |
| Number of Positions | 80 |
| Pitch | 0.050"" (1.27mm) |
| Contact Type | Female Socket |
| Fastening Type | - |
| Row Spacing | 0.100"" (2.54mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

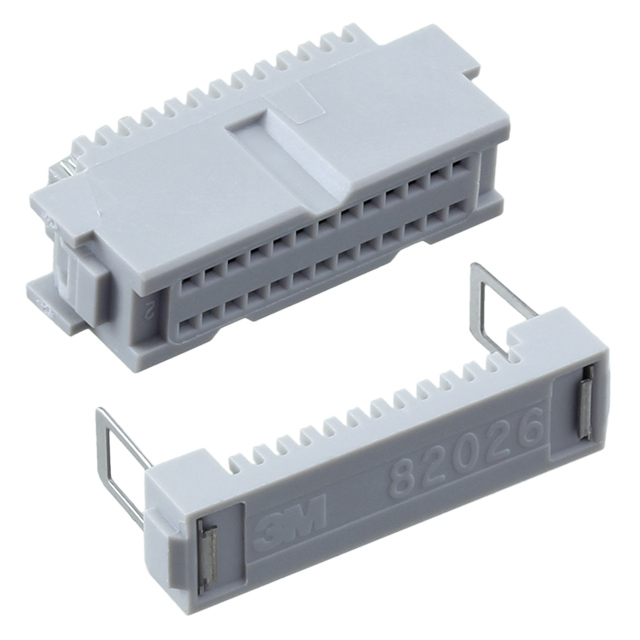

82026-6000-RB
CONN RCPT 26POS IDC 30AWG GOLD
82000000005
FUSE HLDR CART 250V 6.3A PNL MNT

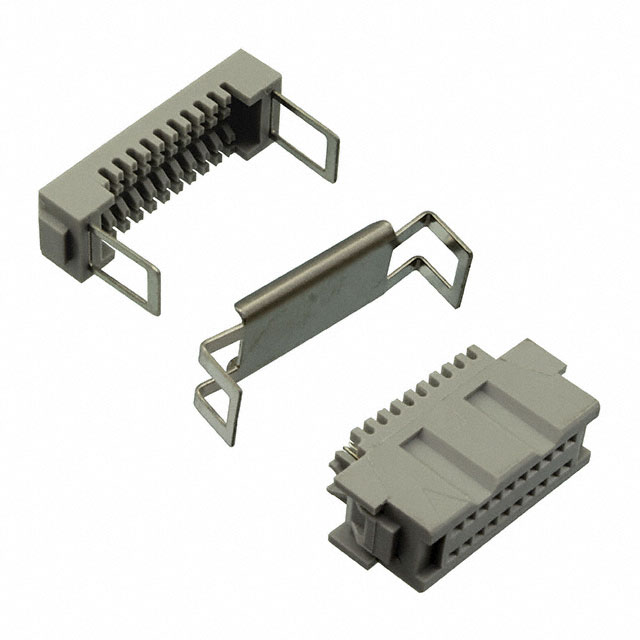

82020-6006RB
