158220-0220
CONN SOCKET 20POS IDC 28AWG GOLDManufacturer: 3M
Categories: Free Hanging, Panel Mount
Quality Control: Learn More
The 3M 158 Series connector, part number 158220-0220, is a 20-position, gray, free-hanging socket connector designed for IDC termination of 28 AWG ribbon cable. Featuring gold-plated contacts with a thickness of 30.0µin (0.76µm), this component utilizes female socket contacts and a friction lock fastening type. The connector has a pitch of 0.079"" (2.00mm) and a row spacing of 0.079"" (2.00mm). Its design includes feed-through capabilities and is supplied in bulk packaging. This connector is commonly utilized in industrial automation, data communication, and consumer electronics applications where reliable, high-density interconnects are required.
Additional Information
Series: 158RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Socket |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 28 AWG |
| Number of Positions | 20 |
| Pitch | 0.079"" (2.00mm) |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Row Spacing | 0.079"" (2.00mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Wire Type | Ribbon Cable |
| Cable Termination | IDC |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

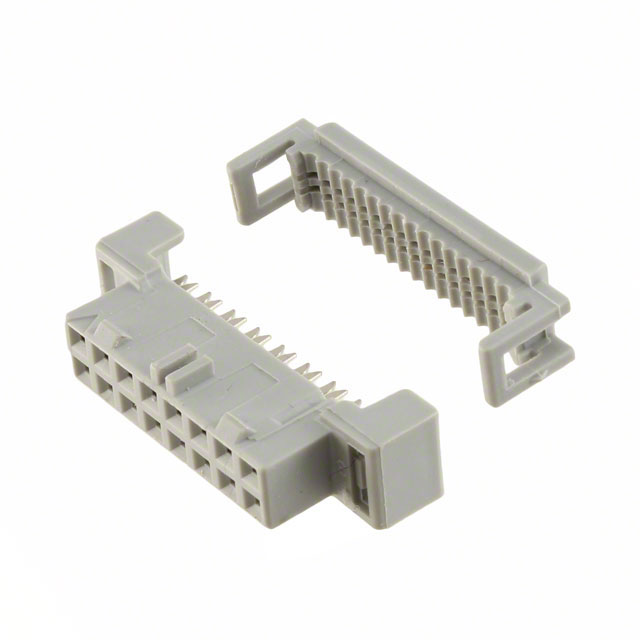

158216-0220
CONN SOCKET 16POS IDC 28AWG GOLD

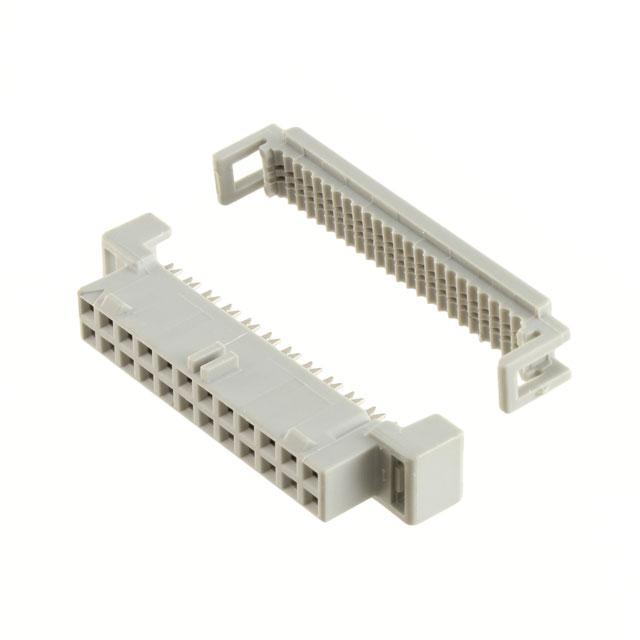

158224-0220
CONN SOCKET 24POS IDC 28AWG GOLD

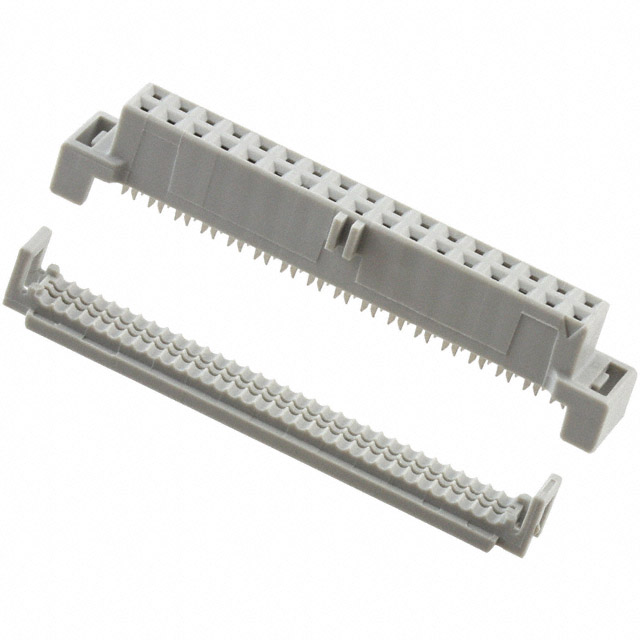

158334-211015
