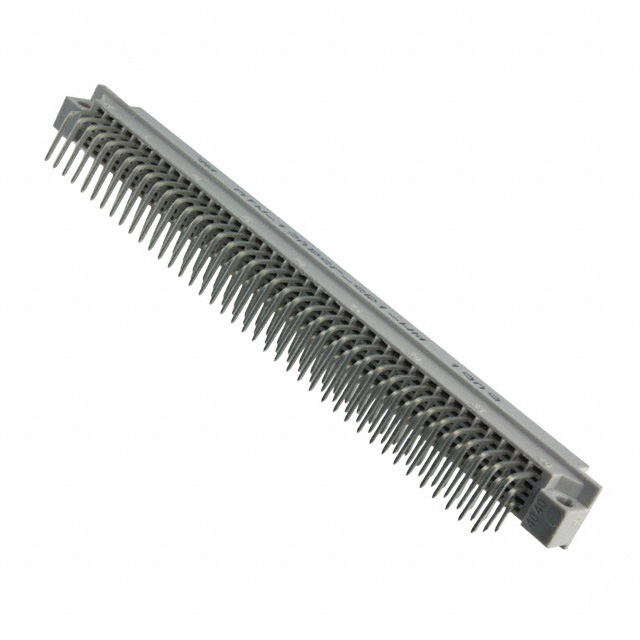

DIN-120RSC-SR1-HM
CONN DIN RCPT 120POS PCB RA GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More
The 3M DIN 41612 DIN-120RSC-SR1-HM is a 120-position female receptacle connector designed for robust board-to-board or wire-to-board connections. Featuring a right-angle, through-hole mounting style, this receptacle utilizes the established DIN 41612 standard, ensuring compatibility and reliability in demanding applications. The contact finish is gold plating with a thickness of 3.00µin (0.076µm), providing excellent conductivity and corrosion resistance. With three rows and 120 loaded positions, this connector offers high-density interconnectivity. The 0.100" (2.54mm) pitch facilitates efficient use of board space. This component is commonly found in telecommunications, industrial automation, and test and measurement equipment where dependable signal integrity is paramount. The DIN-120RSC-SR1-HM is supplied in bulk packaging.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 120 |
| Pitch | 0.100"" (2.54mm) |
| Style | R |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Number of Rows | 3 |
