DIN-096RSC-RR1L-FJ
CONN DIN RCPT 96POS PCB RA GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

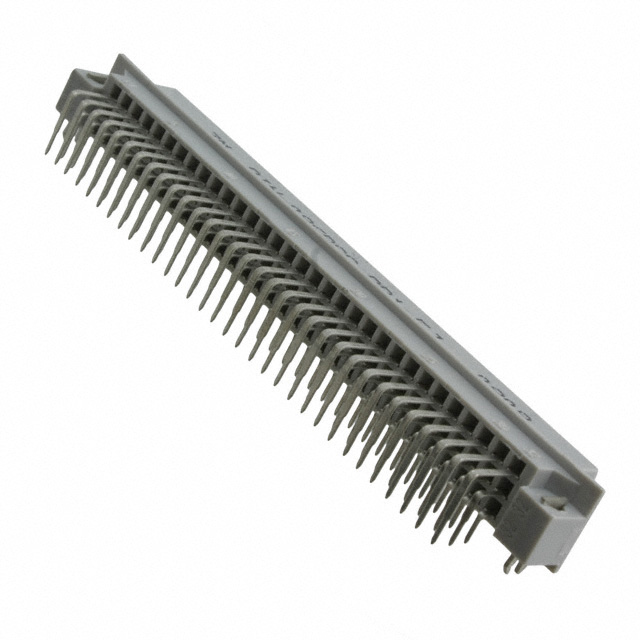

3M DIN 41612 Receptacle, Female Sockets, Part Number DIN-096RSC-RR1L-FJ. This 96-position, 3-row connector features a right-angle, through-hole mounting style with a 2.54mm pitch. The gold-plated contacts, with a 10.0µin (0.25µm) finish, ensure reliable conductivity. Designed for PCB termination, this receptacle includes board lock features for enhanced mechanical stability. It is supplied in bulk packaging. This component is integral to applications within the telecommunications, industrial automation, and data storage sectors.
Additional Information
Series: DIN 41612RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | R |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Number of Rows | 3 |
