DIN-096RPC-S1-FJ
CONN DIN PLUG 96POS PCB GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

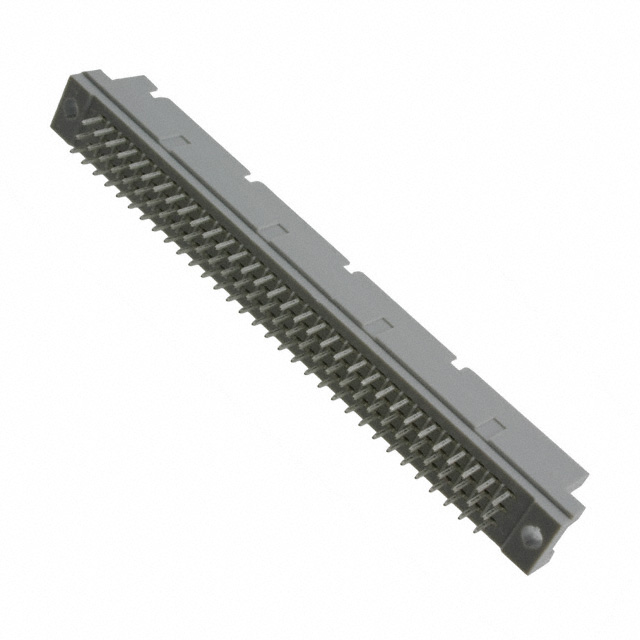

3M DIN 41612 series plug connector, part number DIN-096RPC-S1-FJ. This 96-position, male pin type connector features a gold contact finish with a thickness of 10.0µin (0.25µm) and is designed for through-hole mounting. The connector adheres to the DIN 41612 standard, offering a reliable interconnection solution. It has 3 rows and a pitch of 0.100" (2.54mm). This component is commonly utilized in telecommunications, industrial automation, and test and measurement applications where robust and high-density signal connections are critical. The connector is supplied in bulk packaging.
Additional Information
Series: DIN 41612RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | R |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Number of Rows | 3 |
