DIN-096CSC-S3L-HM
CONN DIN RCPT 96POS PCB GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

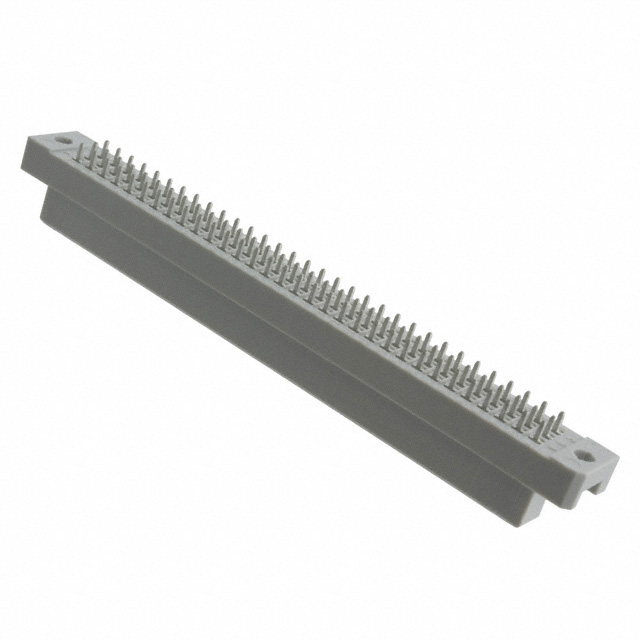

The 3M DIN 41612 Type C receptacle, part number DIN-096CSC-S3L-HM, offers a high-density, 96-position interface for PCB mounting. This female socket connector features a gold contact finish with a 3.00µin (0.076µm) thickness, ensuring robust conductivity and resistance to corrosion. Designed with a 0.100" (2.54mm) pitch across three rows, it supports fully loaded positions for maximum data throughput. The through-hole mounting type and solder termination facilitate secure and reliable connections in demanding applications. This component is widely utilized in telecommunications, industrial automation, and medical equipment where robust and high-performance interconnect solutions are critical.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Number of Rows | 3 |
