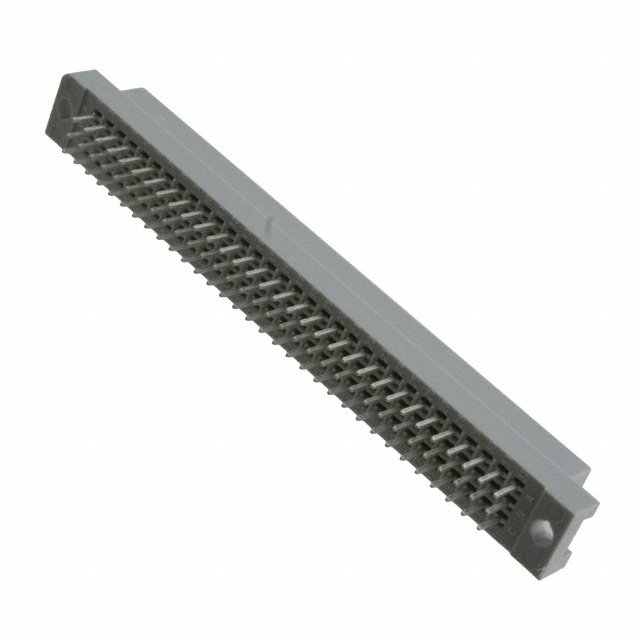

DIN-096CSC-S1L-KR
CONN DIN RCPT 96POS PCB GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More
3M DIN 41612 series connector, part number DIN-096CSC-S1L-KR. This 96-position female receptacle features gold plating on the contacts, with a 30.0µin (0.76µm) finish thickness for enhanced conductivity and corrosion resistance. Designed for through-hole mounting, the connector utilizes a 2.54mm (0.100") pitch and conforms to the DIN 41612 Type C standard, offering three rows for direct PCB termination. This robust connector is suitable for demanding applications across industrial automation, telecommunications, and data processing sectors, ensuring reliable signal integrity and power delivery. Packaged in bulk for efficient integration into high-volume manufacturing processes.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 3 |
