DIN-096CSC-PSL-KR
CONN DIN RCPT 96POS PCB GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

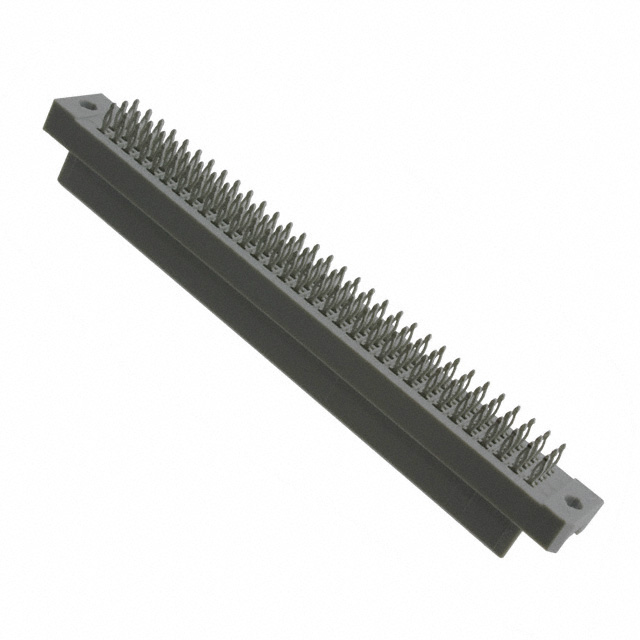

3M DIN 41612 connector, part number DIN-096CSC-PSL-KR, is a 96-position receptacle with female sockets designed for PCB mounting. This C-style connector features gold plating with a 30.0µin (0.76µm) contact finish for reliable, low-resistance connections. The 3-row configuration and 2.54mm (0.100") pitch facilitate high-density signal routing. Manufactured for through-hole mounting, this component utilizes press-fit termination for secure installation. It is supplied in bulk packaging. This connector is commonly employed in telecommunications, industrial automation, and data processing applications.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 3 |
