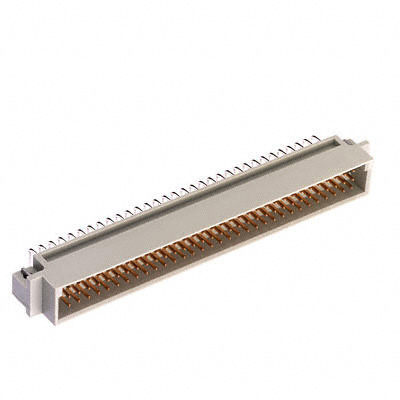

DIN-096CPC-SR1-TR
CONN DIN PLUG 96POS PCB RA GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More
The 3M DIN 41612 connector, part number DIN-096CPC-SR1-TR, is a 96-position right-angle plug designed for PCB mounting. This male connector features gold-plated contacts with a 3.00µin (0.076µm) thickness, ensuring reliable conductivity and durability. It conforms to the DIN 41612 standard, specifically the Type C style with a 0.100" (2.54mm) pitch across its three rows. The through-hole termination facilitates robust solder connections. This component is commonly utilized in industrial automation, telecommunications infrastructure, and high-density backplane applications where robust and reliable interconnectivity is paramount. Packaged in bulk, this connector offers a high-performance solution for demanding electronic systems.
Additional Information
Series: DIN 41612RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Number of Rows | 3 |
